SpitLight DPSS 250

Information
The standard DPSS 250 is offering medium average power (25 W) with a competitive size to power ratio. This model offers great flexibility for special options (e.g. SLM operation, beam expanders, wavelength splitting) and diode pumped operation for a reasonable price.
  1. Specs
  2. Features

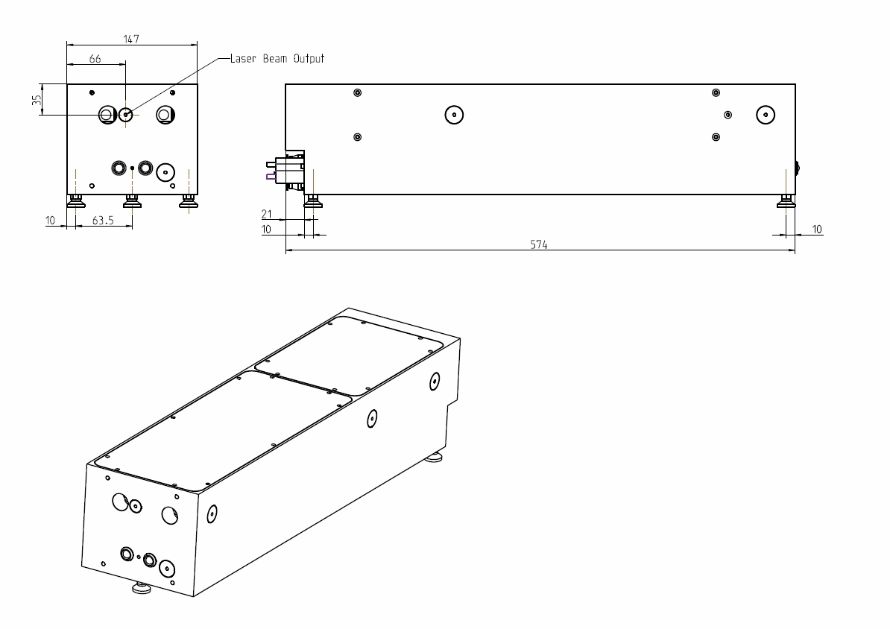

  3. Drawings
  4. Options
  Repetition Rate Pulse Energy
(@ 1064 nm)
Pulse Energy
(@ 532 nm)
Pulse Energy
(@ 355 nm)
Max. Avg. Power
(@ 1064 nm)
Stability RMS
(@ 1064 nm)
DPSS 250 - 50 50 Hz > 250 mJ > 125 mJ > 70 mJ 12,5 W < 0,5 %
DPSS 250 - 100 100 Hz > 250 mJ > 125 mJ > 70 mJ 25 W < 0.5 %
DPSS 250 - 150 150 Hz > 200 mJ > 110 mJ > 65 mJ 30 W < 0.5 %
DPSS 250 - 200 200 Hz > 150 mJ > 70 mJ > 50 mJ 30 W < 1.0 %
DPSS 250 - 250 250 Hz > 130 mJ > 65 mJ > 45 mJ 32,5 W < 1.0 %
DPSS 250 - 1000 1 kHz > 10 mJ > 3 mJ > 2,5 mJ 10 W < 1.0 %
  • Compact laser head and power supply with small footprint
  • Robust and stable resonator structure
  • Maintenance-free pumping chamber
  • Excellent beam quality and pointing stability
  • Long diode lifetime
  • Double pulse option available
  • System can be injection seeded (SLM-Option)
  • Seeder
  • Energy monitor
  • Pointing laser
  • External shutter
  • Double pulse
  • Attenuator
  • Mechanical customization
