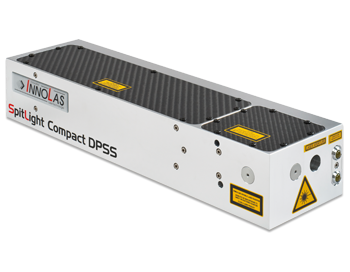

SpitLight Compact DPSS
The Compact DPSS is the best choice for all applications with very limited space for lasers with a small footprint. If lower pulse energies can be accecpted, the Compact series offers cost saving lasers with the advantage of diode technology.
| Repetition Rate | Pulse Energy (@ 1064 nm) |
Pulse Energy (@ 532 nm) |
Pulse Energy (@ 355 nm) |
max. Avg. Power (@ 1064 nm) |
Energy Stability RMS (@ 1064 nm) |
|
|---|---|---|---|---|---|---|
| Compact DPSS 3 | 50 Hz / 100 Hz | > 3 mJ | > 1 mJ | > 0.5 mJ | 0.3W | < 0.5 % |
| Compact DPSS 10 | 50 Hz / 100 Hz | > 10 mJ | > 5 mJ | > 2.5 mJ | 1 W | < 0.5 % |
| Compact DPSS 30 | 50 Hz / 100 Hz | > 30 mJ | > 15 mJ | > 7.5 mJ | 3 W | < 0.5 % |
| Compact DPSS 100 | 50 Hz / 100 Hz | > 100 mJ | > 60 mJ | > 30 mJ | 10 W | < 0.5 % |
- Compact laser head and power supply with small footprint
- Robust and stable resonator structure
- Maintenance-free pumping chamber
- Excellent beam quality and pointing stability
- Long diode lifetime
- Double pulse option available
- Energy monitor
- Pointing laser
- External shutter
- Double pulse
- Attenuator
- Mechanical customization
