DPSS Multi-Pulse Lasers

Information

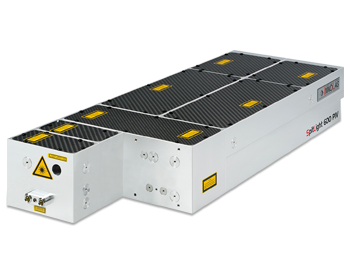

InnoLas DPSS Lasers combine high peak energies in a compact and rugged housing. The double rail DPSS housing archives 2 x 130mJ at 532nm and 100Hz for each rail double pulses are also available.
  1. Compact DPSS PIV
  2. Standard DPSS PIV
  3. Features

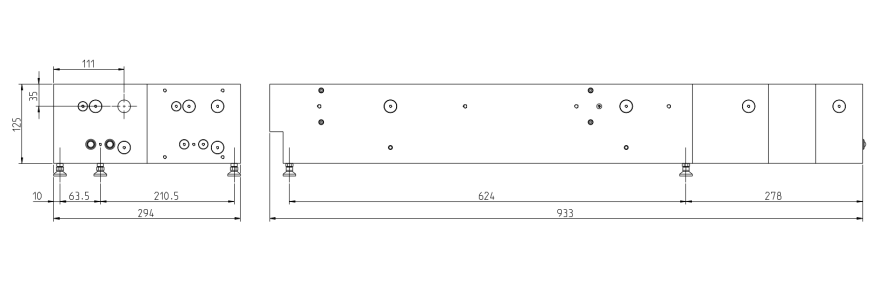

  4. Drawings
  5. Options
  Repetition Rate Pulse Energy (@ 532 nm) Stability RMS (@ 532 nm)
Compact DPSS PIV-50 2 x 50 Hz > 2 x 55 mJ < 1.0 %
Compact DPSS PIV-100 2 x 100 Hz > 2 x 50 mJ < 1.0 %
  Repetition Rate Pulse Energy (@ 532 nm) Stability RMS (@ 532 nm)
SpitLight DPSS 250 PIV-50 2 x 50 Hz > 2 x 120 mJ < 1.0 %
SpitLight DPSS 250-100 2 x 100 Hz > 2 x 120 mJ < 1.0 %
  • Unlimited adjustable pulse separation
  • Compact laser head and power supply with small footprint
  • Robust and stable resonator structure
  • Quick and easy replacement of flashlamps
  • Maintenance-free pumping chamber with ceramic reflector
  • Excellent beam quality and pointing stability
  • Long flashlamp lifetime
  • Each cavity can be double pulsed
  • System can be injection seeded (SLM option) - not for Compact Models
  • Seeder
  • Energy monitor
  • Pointing laser
  • Extrenal shutter
  • Double pulse
  • Attenuator
  • Mechanical customization
