Diode Pumped OPOs

Information
Highest Repetition Rates (50-200Hz) with moderate Output Energies (10 - 35mJ)
  1. EVO S & I OPO
  2. Features

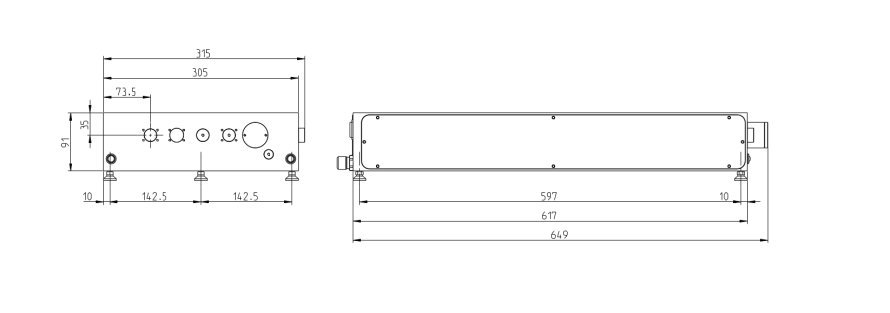

  3. Drawings
  4. Options
  Pulse Energy NIR
(@ 750 nm)
Pulse Energy VIS
(@ 450 nm)
Pulse Width Line Width Tuning Curve
EVO S OPO broadband > 25 mJ > 15 mJ 4 - 7 ns 10 - 450 cm-1 Click here:
EVO S OPO midband > 20 mJ > 10 mJ 4 - 7 ns down to 5 cm-1 Click here:
EVO I OPO broadband > 35 mJ > 22 mJ 4 - 7 ns 10 - 450 cm-1 Click here:
EVO I OPO midband > 30 mJ > 16 mJ 4 - 7 ns down to 5 cm-1 Click here:
  • Pulse to pulse tunable OPOs with wavelength ranges from 410 to 2500 nm and repetition rates up to 200 Hz
  • High pulse energy in each spectral region due to diode-pumped Nd:YAG laser at 355 nm or 532 nm
  • Stable mechanical and optical setup in a compact monolithic housing containing both laser and OPO
  • Spitlight GUI software, including wavelength calibration, to control the whole device
  • Remote client interface over TCP / IP for easy software integration
  • Many Accessories like spectrometer, attenuator, energymonitor are available
  • internal energy monitor
  • internal spectrometer
  • fiber coupling
  • fast automatic attenuation
  • UV version available
  • higher energy models available on request - please contact us!
