Lamp Pumped OPOs

Information
Highest Output Energies( 20-100mJ)  with moderate Repetition Rates (10-30Hz)
  1. Compact 200 & 400 OPO
  2. Standard 600 & 1000 OPO
  3. Features

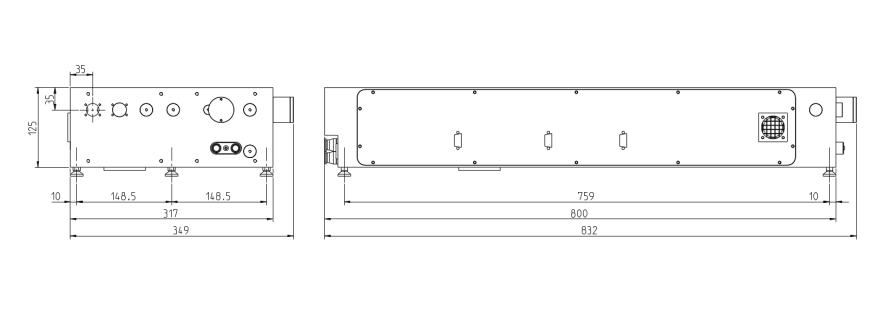

  4. Drawings
  5. Options
  Pulse Energy NIR
(@ 750 nm)
Pulse Energy VIS
(@ 450 nm)
Pulse Width Line Width Tuning Curves
Compact 200 OPO broadband > 40 mJ > 20 mJ 5 - 8 ns 10-450 cm-1 Click here:
Compact 200 OPO midband > 30 mJ > 18 mJ < 7 ns down to 5 cm-1 Click here:
Compact 400 OPO broadband > 60 mJ > 30 mJ 5 - 8 ns 10 - 450 cm-1 Click here:
Compact 400 OPO midband > 50 mJ > 27 mJ < 7 ns down to 5 cm-1 Click here:
  Pulse Energy NIR
(@ 750 nm)
Pulse Energy VIS
(@ 450 nm)
Pulse Width Line Width Tuning Curves
SpitLight 600 OPO broadband > 100 mJ > 60 mJ 4 - 7 ns 10 - 450 cm-1 Click here:
SpitLight 600 OPO midband > 80 mJ > 50 mJ 4 - 7 ns down to 5 cm-1 Click here:
SpitLight 1000 OPO broadband on request > 80 mJ 4 - 7 ns 10 - 450 cm-1 Click here:
SpitLight 1000 OPO midband on request > 60 mJ 4 - 7 ns down to 5 cm-1 Click here:
  • Pulse to pulse tunable OPOs with wavelength ranges from 410 to 2500 nm and repetition rates up to 20 Hz
  • High pulse energy in each spectral region due to flashlamp-pumped Nd:YAG laser at 355 nm or 532 nm
  • Stable mechanical and optical setup in a compact monolithic housing containing both laser and OPO
  • Spitlight GUI software, including wavelength calibration, to control the whole device
  • Remote client interface over TCP / IP for easy software integration
  • Many Accessories like spectrometer, attenuator, energymonitor are available
  • internal energy monitor
  • internal spectrometer
  • fiber coupling
  • fast automatic attenuation
  • UV version available
