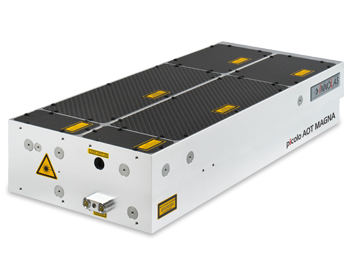

MAGNA

Information
Based on the patented resonator design of the picolo series and the industry-proof amplifier design of the SpitLight family, the MAGNA platform creates sub-nanosecond pulses with up to 2 Joule pulse energy, with a peak power of 4 Gigawatt. Customized amplifier designs are also available.
  1. Specs
  2. Features
  3. Drawings
  4. Options
  Repetition Rate Pulse Energy
(1064 nm)
Pulse Energy
(532 nm)
Pulse Energy
(355 nm)
Stability RMS
(1064 nm)
Pulse Width
(1064 nm)
MAGNA I 1 - 20 Hz > 200 mJ > 100 mJ > 50 mJ < 1.2 % < 600 ps
MAGNA II 1 - 20 Hz > 400 mJ > 200 mJ > 100 mJ < 1.2 % < 600 ps
MAGNA III 1 - 20 Hz > 1000 mJ > 500 mJ > 250 mJ < 1.2 % < 600 ps
MAGNA IV 1 - 10 Hz > 2000 mJ > 1000 mJ > 500 mJ < 1.2 % < 600 ps
  • High energy: uo to 2 J at 500 ps pulse width
  • High peak power: up to 4 Giga-Watt
  • Sub-nanosecond oscillator and amplifier integrated in monolithic housing
  • Active Q-switch, < 400 ps jitter
  • High-energy sub-nanosecond pulses enable new experiments
  • Quick and easy exchange of flashlamps
  • Maintenance-free pumping chambers with ceramic reflector
  • Excellent beam quality and pointing stability
  • Integrated Harmonic Modules for frequency conversion down to 213nm
  • Attenuator with Software integration
  • Energy Monitors with Software integration
