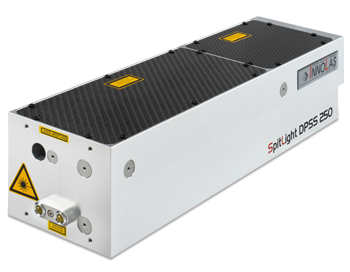

SpitLight DPSS 250

Information
The standard DPSS 250 is offering medium average power (25 W) with a competitive size to power ratio. This model offers great flexibility for special options (e.g. SLM operation, beam expanders, wavelength splitting) and diode pumped operation for a reasonable price.
  1. Specs
  2. Features
  3. Drawings
  4. Options
            DPSS 250
Repetition Rate           ​Product available from 1 to 1000 Hz
          (Following specifications are for 100 Hz)
Pulse Energy @ 1064 nm           > 250 mJ
Pulse Energy @ 532 nm           > 125 mJ
Pulse Energy @ 355 nm           > 70 mJ
Pulse Energy @ 266 nm           > 20 mJ
Pulse Energy @ 213 nm           > 4 mJ

Stability RMS @ 1064 nm            < 0,5 %
Stability RMS​ @ 532 nm            < 1,0 %
Stability RMS @ 355 nm            < 1,3 %
  • Compact laser head and power supply with small footprint
  • Robust and stable resonator structure
  • Maintenance-free pumping chamber
  • Excellent beam quality and pointing stability
  • Market leading diode lifetime
  • Double pulse option available
  • System can be injection seeded (SLM-Option)
  • Versions with improved pulse-to-pulse stability and smooth gaussian beam profi le available
  • Seeder
  • Energy monitor
  • Pointing laser
  • External shutter
  • Double pulse
  • Attenuator
  • Mechanical customization
