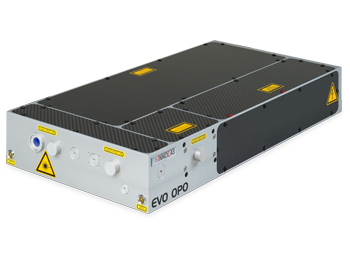

Diode Pumped OPOs

Information
Highest Repetition Rates (50-500 Hz) with moderate Output Energies (10 - 35mJ)

Higher energy up to 80 mJ and higher repetition rate up to 1000 Hz on request
  1. EVO S & I OPO
  2. Features
  3. Drawings
  4. Options
  Pulse Energy NIR
(@ 750 nm)
Pulse Energy VIS
(@ 450 nm)
Pulse Width Line Width Tuning Curve
EVO S OPO broadband > 25 mJ > 15 mJ 4 - 7 ns 10 - 250 cm-1 Click here:
EVO S OPO midband > 20 mJ > 10 mJ 4 - 7 ns down to 5 cm-1 Click here:
EVO I OPO broadband > 35 mJ > 22 mJ 4 - 7 ns 10 - 250 cm-1 Click here:
EVO I OPO midband > 27 mJ > 15 mJ 4 - 7 ns down to 5 cm-1 Click here:
  • Pulse to pulse tunable OPOs with wavelength ranges from 410 to 2500 nm and repetition rates up to 500 Hz
  • High OPO pulse energies combined with high average power (up to 50 mJ / 8 W)
  • Stable mechanical and optical setup in a compact monolithic housing containing both laser and OPO
  • SpitLight Software including full Laser control, OPO wavelength calibration and Remote Client Interface for easy Software integration
  • Many integrated options available like energy monitor, spectrometer, fiber coupling, fast attenuation, low divergence output or OPO harmonic generation (210-660 nm)
  • internal energy monitor
  • internal spectrometer
  • fiber coupling
  • fast automatic attenuation
  • UV version available
  • higher energy models available on request - please contact us!
