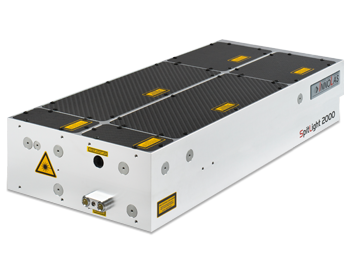

SpitLight High Power

Information
For highest energy and full flexibility built in monolithic housing with small footprint.

1 - 7 J can be reached with this laser series.
  1. High Power 1200
  2. High Power 1500
  3. High Power 2000
  4. High Power 2500
  5. SpitLight 7000
  6. Features

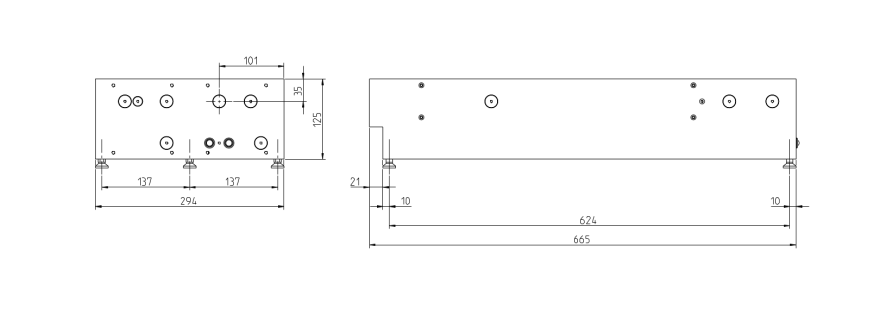

  7. Drawings
  8. Options
  Repetition Rate Pulse Energy
(1064 nm)
Pulse Energy
(532 nm)
Pulse Energy
(355 nm)
Pulse Energy
(266 nm)
Stability RMS
(1064 nm)
High-Power 1200-10 10 Hz > 1250 mJ > 750 mJ > 330 mJ > 100 mJ < 0.8 %
High-Power 1200-20 20 Hz > 1150 mJ > 690 mJ > 300 mJ > 110 mJ < 1.0 %
High-Power 1200-30 30 Hz > 1050 mJ > 600 mJ > 280 mJ > 100 mJ < 1,2 %
High-Power 1200-50 50 Hz > 700 mJ > 370mJ > 200 mJ > 60 mJ < 1,5 %
   Repetition Rate Pulse Energy
(1064 nm)
Pulse Energy
(532 nm)

Pulse Energy
(355 nm)
Pulse Energy
(266 nm)
Stability RMS
(1064nm)
High-Power 1500-10 10 Hz > 1500 mJ > 900 mJ > 420 mJ > 150 mJ < 1.0 %
High-Power 1500-20 20 Hz > 1350 mJ > 800 mJ > 400 mJ > 130 mJ < 1.5 %
High-Power 1500-30 30 Hz > 1200 mJ > 700 mJ > 350 mJ > 120 mJ < 2.2 %
High-Power 1500-50 50 Hz > 800 mJ > 450 mJ > 240 mJ > 70 mJ < 2.7 %
  Repetition Rate Pulse Energy
(1064 nm)
Pulse Energy
(532 nm)
Pulse Energy
(355 nm)
 Pulse Energy
(266 nm)
Stability RMS
(1064nm)
High-Power 2000-10 10 Hz > 2000 mJ > 1200 mJ > 600 mJ > 130 mJ < 1.0 %
High-Power 2000-20 20 Hz > 1800 mJ > 1050 mJ > 480 mJ > 170 mJ < 1.2 %
High-Power 2000-30 30 Hz > 1650 mJ > 800 mJ > 440 mJ > 150 mJ < 2.0 %
High Power 2000-50 50 Hz > 1100 mJ > 600 mJ > 270 mJ > 100 mJ < 2.5 %
  Repetition Rate Pulse Energy
(1064 nm)
Pulse Energy
(532 nm)
Pulse Energy
(355 nm)
Pulse Energy
(266 nm)
Stability RMS
(1064 nm)
High-Power 2500-10 10 Hz > 2500 mJ > 1400 mJ > 700 mJ > 200 mJ < 1.0 %
High-Power 2500-20 20 Hz > 2200 mJ > 1200 mJ > 650 mJ > 230 mJ < 1.2 %
High-Power 2500-30 30 Hz > 2000 mJ > 1000 mJ > 580 mJ > 200 mJ < 2.0 %
  Repetition Rate Pulse Energy
(1064 nm)
Pulse Energy
(532 nm)
Pulse Energy
(355 nm)
Pulse Energy
(266 nm)
Stability RMS
(1064 nm)
SpitLight 7000 3 Hz > 7000 mJ > 4000 mJ > 2000 mJ > 600 mJ < 0.8 %
  • Compact laser head and power supply with small footprint
  • Robust and stable resonator structure
  • Quick and easy change of fl ashlamps
  • Maintenance-free pumping chamber with ceramic refl ector
  • Excellent beam quality and pointing stability
  • Long fl ashlamp lifetime
  • Double pulse option available
  • System can be injection seeded (SLM-Option)
  • Top hat beam profi le available
  • energy monitor (display in software available)
  • injection seeding
  • beam profile optimization (e.g. top hat available)
  • attenuator (manual or motorized)
  • flexible resonator design (e.g. stable or instable)
  • multi-pulse option: pulse separation times as low as 100ns
  • fifth harmonic available
  • various cooling options available depending on repetition rate
  • customization possible
