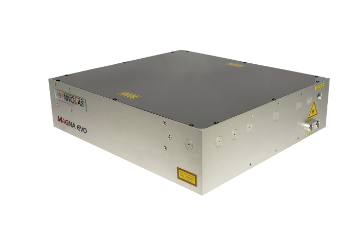

MAGNA EVO

Information
Based on the patented resonator design of the picolo series and the industry-proof amplifier design of the SpitLight family, the MAGNA platform creates sub-nanosecond pulses with up to 30 W output power, and up to 1kHz pulse frequency. Customized amplifier designs and a broad range of options are available.
  1. Specs
  2. Features

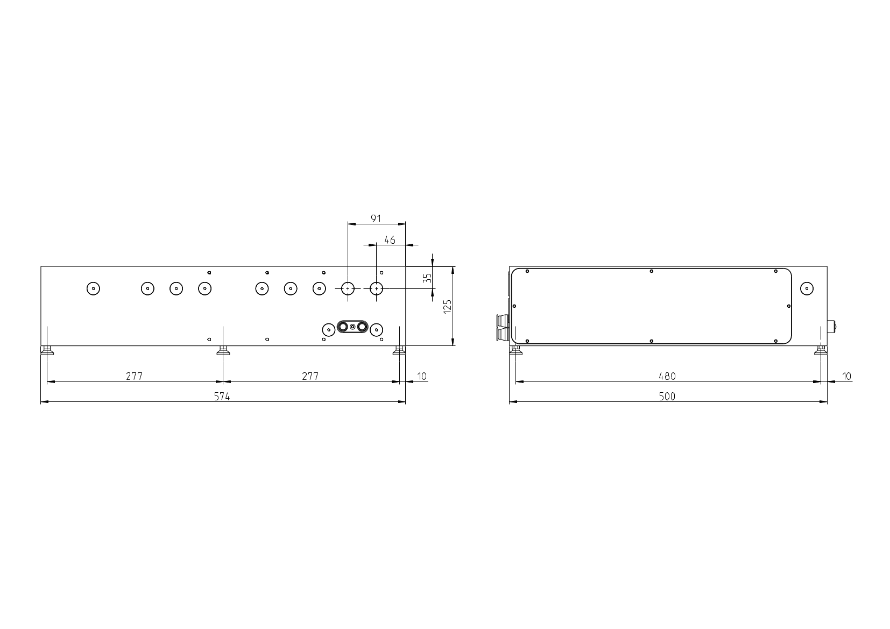

  3. Drawings
  4. Options
  Repetition Rate Pulse Energy
(1064 nm)
Pulse Energy
(532 nm)
Pulse Energy
(355 nm)
Stability RMS
(1064 nm)
Pulse Width
(1064 nm)
MAGNA EVO I 1 to 1000 Hz > 30 mJ > 15 mJ > 10 mJ < 1.5 % < 600 ps
MAGNA EVO II 1 - 1000 Hz > 125 mJ > 75 mJ > 40 mJ < 1.5 % < 600 ps
MAGNA EVO III 1 - 1000 Hz > 250 mJ > 150 mJ > 80 mJ < 1.5 % < 600 ps
  • > 25 Watt at 500 ps pulse duration
  • Up to 1000 Hz pulse repetition rate
  • Fully Diode pumped
  • Active Q-switch, < 400 ps Jitter
  • Long diode lifetime, low maintenance
  • Excellent beam quality and pointing stability
  • Robust and stable monolithic design
  • Single longitudinal mode available
  • 266 nm on request
  • Integrated Harmonic Modules for frequency conversion down to 213nm
  • Attenuator with Software integration
  • Energy Monitors with Software integration
