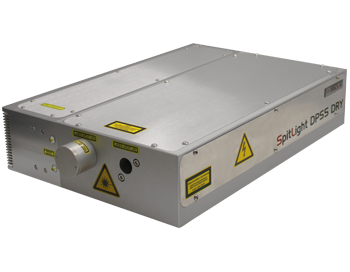

SpitLight DPSS DRY

Information
The new Spitlight DPSS DRY laser by InnoLas Laser GmbH is an evolution of the well-established DPSS laser models. Key feature of the “DPSS DRY” laser is a cooling concept based on peltier technology enabling to operate the laser without any internal and external cooling water circuit. Furthermore, the laser comes with an all-in-one design with all components integrated into one housing.
  1. Specs
  2. Features

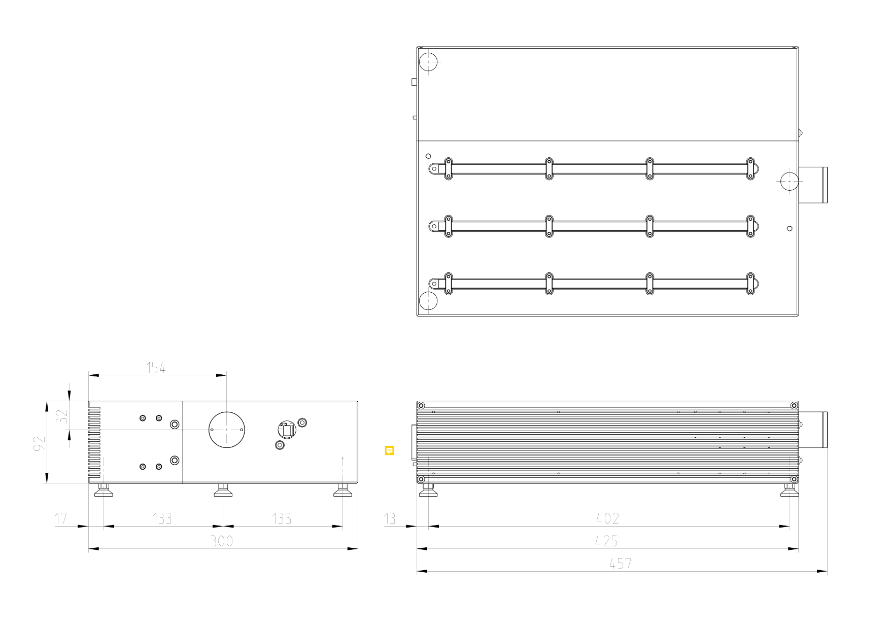

  3. Drawings
  4. Options
  Repetition Rate Pulse Energy
(@ 1064 nm)
Pulse Energy
(@ 532 nm)
Pulse Energy
(@355 nm)
Max. Avg. Power
(@ 1064 nm)
Stability RMS
(@ 1064 nm)
DPSS DRY I 10 Hz > 80 mJ > 40 mJ > 20 mJ 0.8 W < 0.3 %
DPSS DRY II 10 Hz > 150 mJ > 80 mJ > 50 mJ 1.5 W < 0.3 %
  • No internal / external water cooling
  • All-in-one: integrated power supply
  • Low voltage supply input
  • Wide temperature range available, down to -10°C
  • Robust and stable monolithic design
  • Easy to integrate
  • Seeder
  • Energy monitor
  • Pointing laser
  • External shutter
  • Mechanical customization
