Lamp Pumped OPOs

Information
Highest Output Energies( 20-150mJ)  with moderate Repetition Rates (10-30Hz)

Higher energy up to 300 mJ on request
  1. Compact 200 & 400 OPO
  2. Standard 600 & 1000 OPO
  3. Features

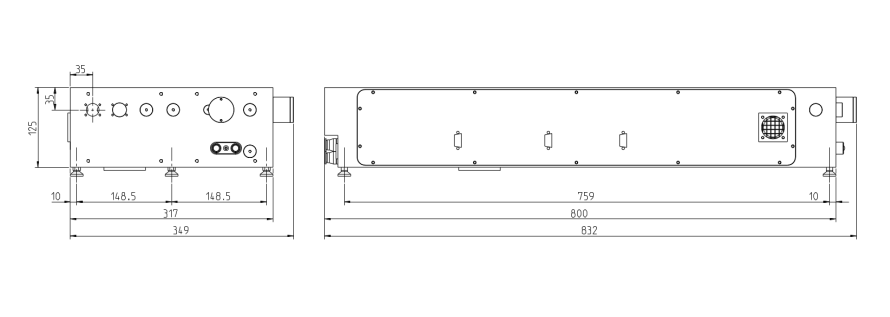

  4. Drawings
  5. Options
  Pulse Energy NIR
(@ 750 nm)
Pulse Energy VIS
(@ 450 nm)
Pulse Width Line Width Tuning Curves
Compact 200 OPO Broadband > 40 mJ > 20 mJ 5 - 8 ns 10-450 cm-1 Click here:
Compact 200 OPO Midband > 30 mJ > 18 mJ < 7 ns down to 5 cm-1 Click here:
Compact 400 OPO Broadband > 60 mJ > 35 mJ 4 - 7 ns 10 - 250 cm-1 Click here:
Compact 400 OPO Midband > 50 mJ > 30 mJ 4 - 7 ns down to 5 cm-1 Click here:
  Pulse Energy NIR
(@ 750 nm)
Pulse Energy VIS
(@ 450 nm)
Pulse Width Line Width Tuning Curves
SpitLight 600 OPO Broadband > 100 mJ > 60 mJ 4 - 7 ns 10 - 450 cm-1 Click here:
SpitLight 600 OPO Midband > 80 mJ > 50 mJ 4 - 7 ns down to 5 cm-1 Click here:
SpitLight 1000 OPO Broadband > 150 mJ > 85 mJ 4 - 7 ns 10 - 450 cm-1 Click here:
SpitLight 1000 OPO Midband > 120 mJ > 70 mJ 4 - 7 ns down to 5 cm-1 Click here:
  • Pulse to pulse tunable OPOs with wavelength ranges from 410 to 2500 nm and repetition rates up to 30 Hz
  • High OPO pulse energies up to 250 mJ
  • Stable mechanical and optical setup in a compact monolithic housing containing both laser and OPO
  • Spitlight Software including full Laser control, OPO wavelength calibration and Remote Client Interface for easy Software integration
  • Many integrated options available like energy monitor, spectrometer, fiber coupling, fast attenuation, low divergence output or OPO harmonic generation (210 - 660 nm)
  • internal energy monitor
  • internal spectrometer
  • fiber coupling
  • fast automatic attenuation
  • UV version available
